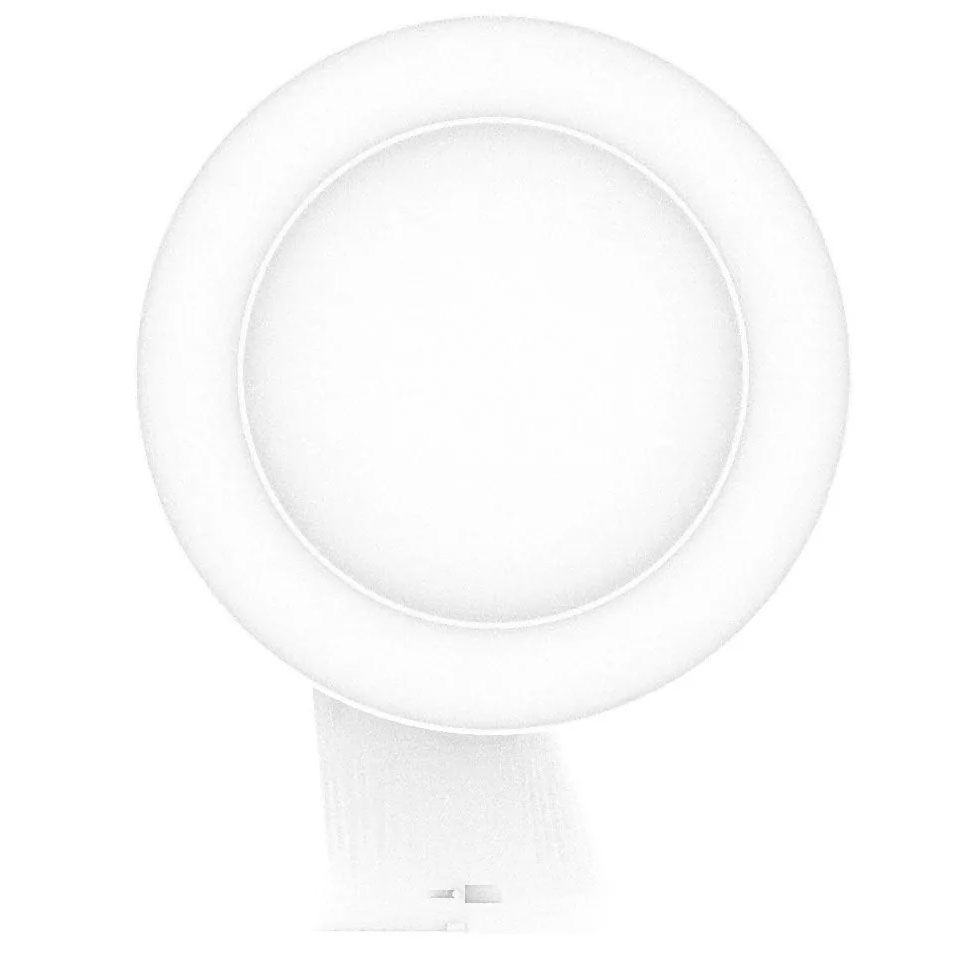

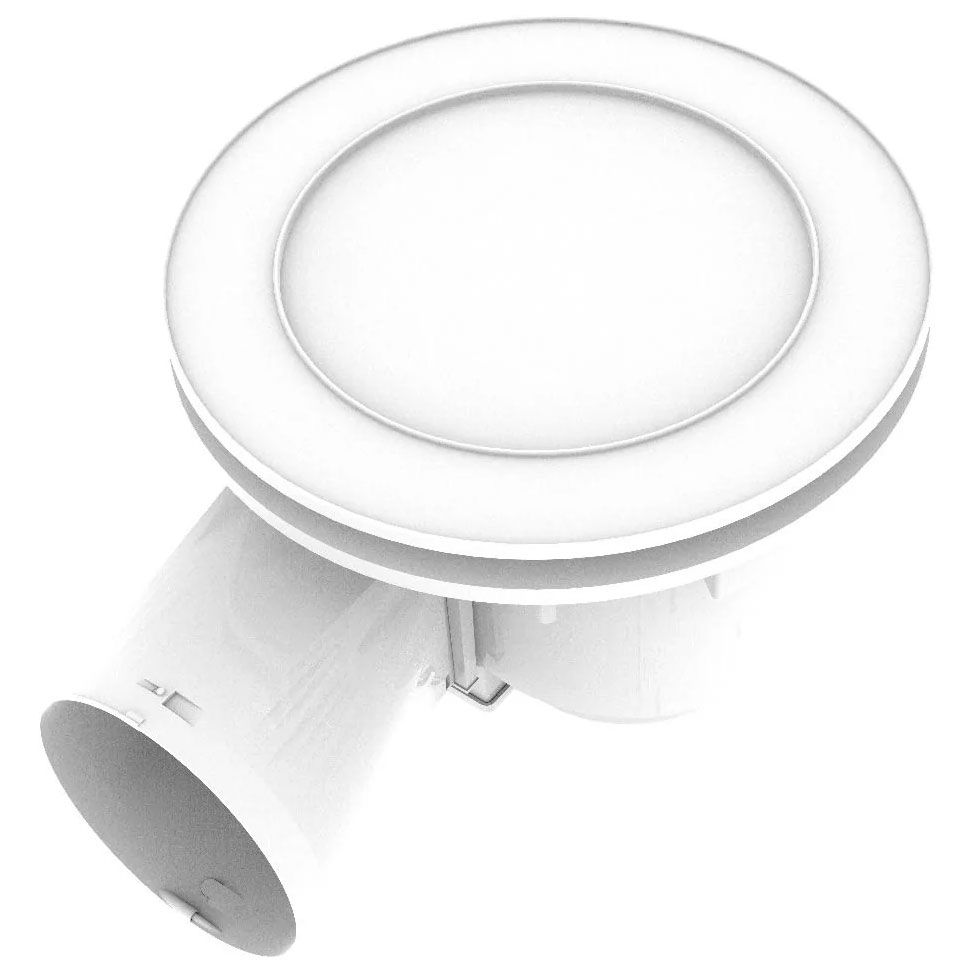

IXL Ventflo 200mm Ducted Ceiling Exhaust Extraction Fan & Light

The IXL Ducted Ventflo Ceiling Exhaust Fan and Light is designed to fit a ceiling cavity with a minimum height of 210mm, and has a 125mm diameter duct outlet.

The Ducted Ventflo Fan works by drawing air from the room, and as with all exhaust fans, it is essential that sufficient air inlets exist through windows, vents or under doors.

IXL 10336 Features:

• Impeller housing design provide powerful air flow extraction
• Suitable for bathrooms, kitchens, laundries and toilets
• IP24 rated – can be installed directly above a shower
• Energy saving 12W 4000K cool white LED panel
• 50,000 hours long life expectancy LED

IXL 10336 Specifications:

• Duct Outlet: 125mm (Ducting not included)
• Back draught flaps fitted
• Clearance required above unit: 210mm
• LED Light Wattage: 12W
• LED Light Output: 900 Lumens
• Colour Temp: 4000K (Kelvins)
• Coloured Mood Lighting: Cool White
• Exhaust capacity: 280 m3/h / 77 l/s
• Fan size: 200mm
• Can be installed directly over a shower
• Suitable for wet / steamy areas
• Cutout size: 240mm
• IP Rating: IP24
• Minimum ceiling height: 2.1m
• Maximum ceiling height: 2.4m
• Life: Up to 5000hrs
